Caterham Style Rear Light Cluster Clear (Pair)

Description

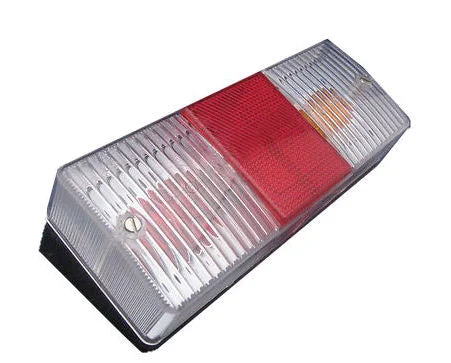

Caterham style rear light cluster (Pair) as shown in the pictures r

They have an E marked on the lens.

r

These have the 20 degree angled rubber mounting plinth

r

Lamp has four wires with bullet connectors
Red Tail
Green Indicator
Green/Purple Stop
Black Earth

r

These lamps perform the following functions
Stop
Tail
Indicator
Reflector

r

The lamps and the rubber plinths are not handed

r

Please ensure you fit these correctly and use them correctly.

rr

Kit consists
2 Rubber mounting plinths
2 Stop & Tail, Indicator, Reflector lamps

r

Technical Specification

r

Rubber Mounting Plinth
Construction: Rubber
Length: 191mm
Height: 75mm
Depth at highest point (Top side): 37mm
Depth at lowest point (Botton side): 6mm
Fixing to body are not provided

r

Lamps
Length: 190mm
Height: 72mm
Depth: 37mm
E marked
Bulbs fitted: YES
Connector system Bullet Connectors

r

please note delivery time on these is around 1 week

rrThese are available in clear lens option also,
