Description

Audi

A4 (2008-2016)

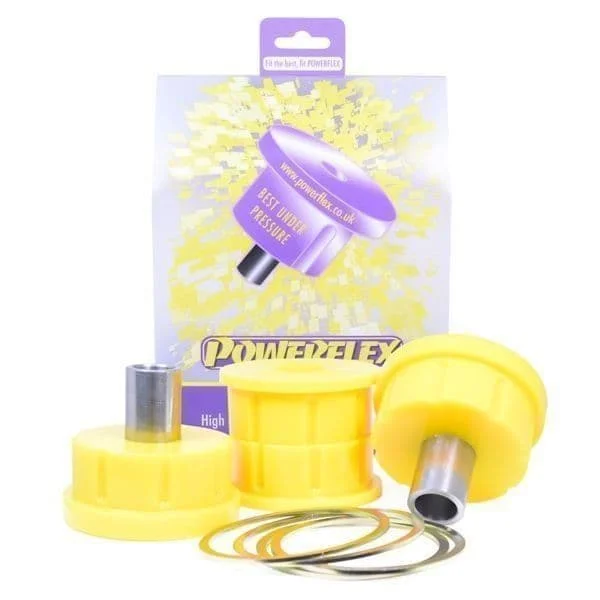

Powerflex Rear Subframe Front Bush

PFR3-730

This is a replacement bush, for an insert that fits into the original bush OE number: 8K0505145B please use PFR3-731, for an insert to fit the original bush OE number: 4G0505145B please use PFR3-737.

Diagram Position: 30

Number of Bushes Supplied: 2

OEM Number: 8K0505145B

OEM Number: 4G0505145B

Range: ROAD Series​​​​​​​

Fitting Instructions:

1. Remove the original bushes from subframe.
2. Clean any dirt and corrosion from the bores in the subframe. Make sure to remove any sharp
edges from the bore.
3. Fit steel washer/rings to polyurethane bushes so that they sit flush against the underside lip.
4. Fit polyurethane A bush into bores of the subframe on the topside.
5. Fit polyurethane B bush into bores of the subframe on the bottom.
6. Apply supplied grease into bore of the bush and around top faces.
7. Fit stainless steel sleeve into bush.
8. Tension all hardware to manufacturers recommended torque settings.
